Design features

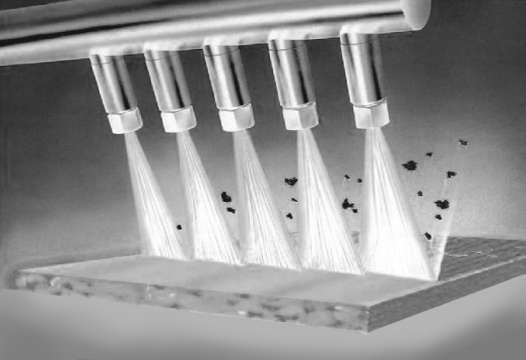

• The high-pressure descaling nozzle sprays sharp and high-impact water to eradicate the primary and secondary oxide skin quickly and cleanly, and the evenly distributed impact force eliminates the surface stripe phenomenon.
• Sprinkler head, flow stabilizer and filter can be combined to form a whole and then installed on the water spray header.
• The 682 and 694 series are used for systems where space is not limited, and the 642 series is used for systems where space is limited.
• The 642 series compact nozzles are specially designed to meet lower spray heights. Used for descaling of thin slab, rail beam billet, billet and round billet.


General application

• Removal of primary and secondary scale
• Flushing equipment

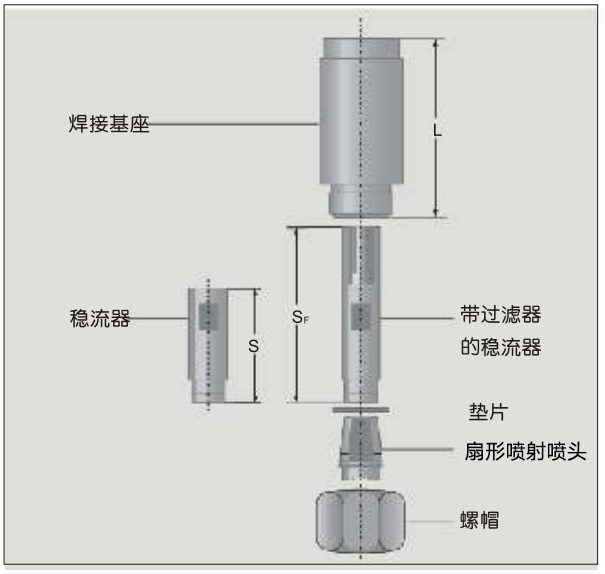

Structural composition

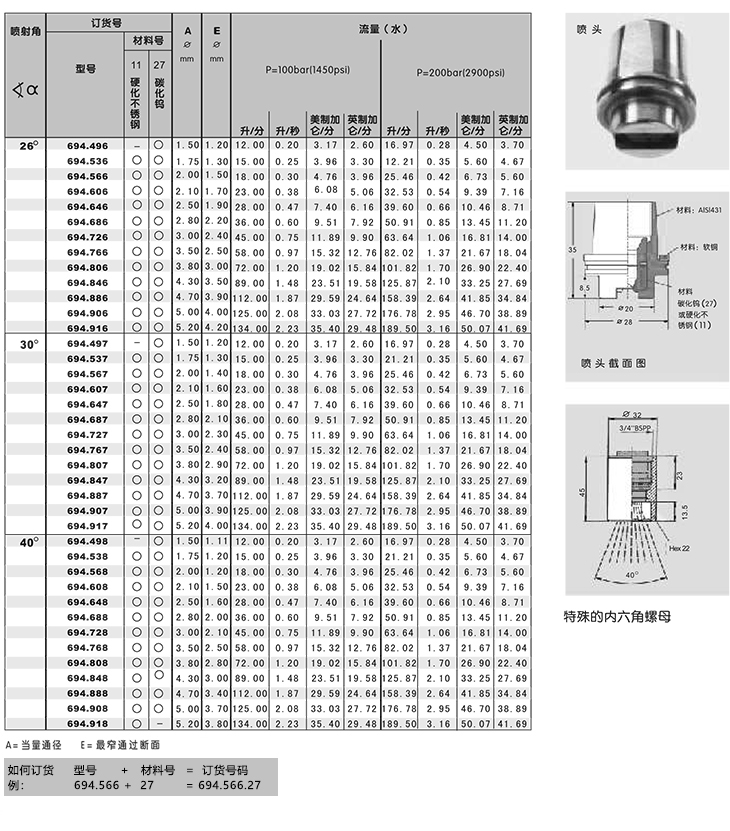

Performance data

694 series nozzle:
