Design features

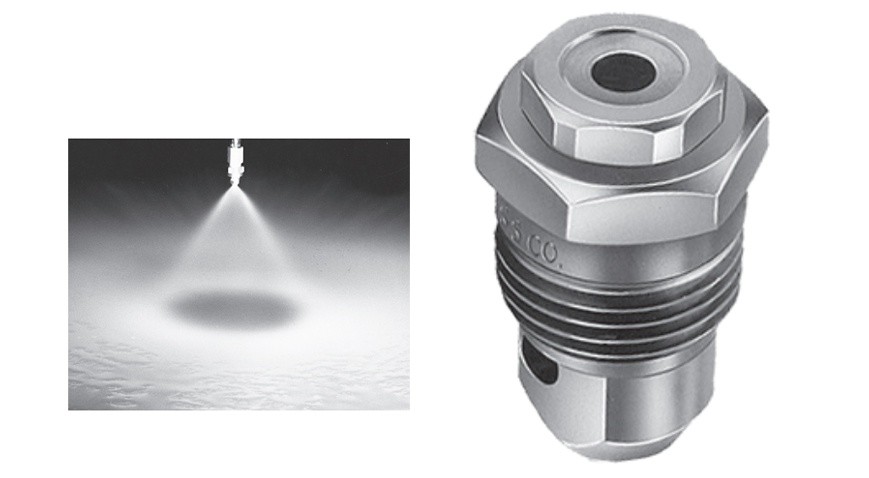

Straight‑stream spray nozzles are characterized by their ability to produce a hollow conical spray pattern, with a ring‑shaped spray zone and uniform spray distribution.

This type of nozzle can produce fine droplets and features a large, unobstructed flow passage.

The spray caps are interchangeable within each tube size group and are also available in a wide‑angle spray configuration.

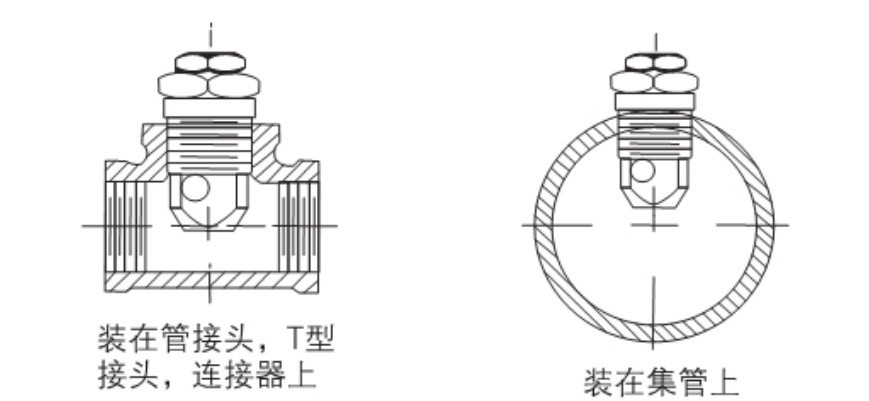

This linear spray, when mounted on a T‑fitting or manifold, exhibits a reduced cross‑sectional footprint and is widely employed for fly ash suppression.

General application

• Salt spray
• Dust Control
• Gas scrubbing, cleaning, and cooling
• Metal treatment
• Product degreasing
• Spray cooling

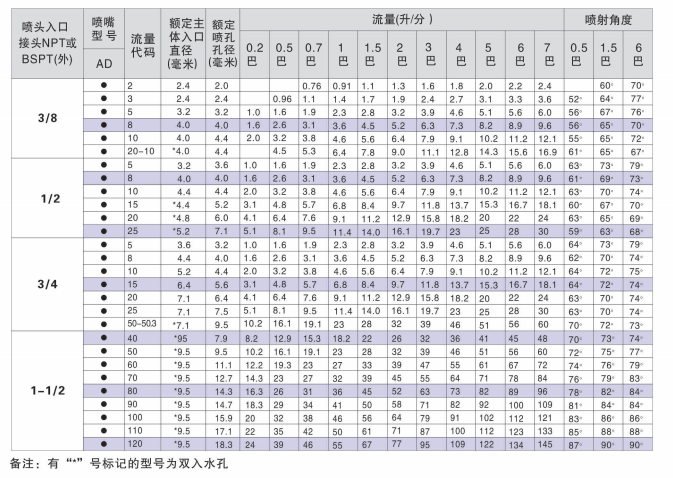

Performance Data

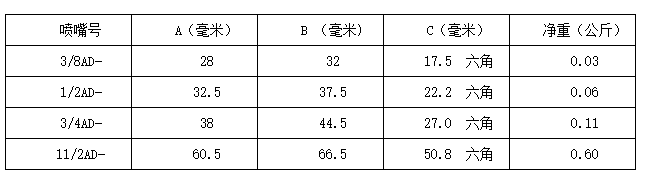

Dimensions and Weight

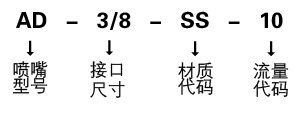

Order Information

Note: BRASS – brass, SS – stainless steel, 316SS – 316 stainless steel
