Product Overview:

The micro‑mist humidification and cooling system is a next‑generation, energy‑efficient, high‑performance, clean, and hygienic humidification and cooling device. Since its launch, it has quickly gained widespread adoption across numerous industries, emerging as the optimal choice to replace traditional humidification methods such as high‑pressure misting humidifiers, air‑water mixed humidifiers (also known as two‑fluid humidifiers), and spray‑chamber humidifiers.

The heart of the micro‑mist humidifier/cooling system—the ceramic plunger pump—pressurizes purified water to between 5 and 7 MPa. The high‑pressure water is then conveyed through tubing to specialized micro‑mist nozzles, where it is atomized into a cloud of droplets measuring 3 to 10 μm and sprayed into the air. As these fine mist particles absorb heat from the surrounding air, they transition from liquid to vapor, increasing atmospheric humidity while simultaneously lowering the air temperature. This process constitutes an enthalpy‑constant humidification and cooling effect. When airborne particulate matter is abundant, it combines with the water vapor, becomes heavier, and settles to the ground—this is the fundamental principle behind the dust‑suppression function of high‑pressure micro‑mist systems. Moreover, because the mist droplets are extremely fine, water vapor achieves thorough and efficient contact with the air, enabling harmful gaseous pollutants to dissolve readily in the mist. This is the operating principle of the AIR WASHING function in micro‑mist systems.

Scope of Application:

Direct indoor humidification in the printing plant;

Indoor direct humidification in the textile industry;

Indoor cooling and dust reduction in automobile painting plant;

Indoor cooling and dust reduction in power house;

Pharmaceutical factory spray disinfection.

Product features:

Fog fine: the micro-mist spray nozzle can produce 5 billion droplets per second, the diameter of the droplets is only 3 ~ 10μm, especially like clouds in the mountain, humidification and cooling effect is excellent.

Energy saving: 1 liter of water atomization only consumes 6W power, is the 1% of the traditional electric humidifier, is one-tenth of the centrifugal or gas-water hybrid cooling humidifier.

Reliable: the high-pressure micro-mist cooling humidifier host adopts industrial imported plunger pump, which can run continuously for 24 hours for a long time. The nozzle and water mist distributor have no power vulnerable parts and are not damaged in high dust environment.

High efficiency: the system humidification cooling efficiency is extremely high, up to 100 in the room, even in the air conditioning box, the efficiency is as high as 90%, is other enthalpy humidifier can not do.

Hygiene: The water of the high-pressure micro-mist system adopts a sealed non-circular use, which will not cause the reproduction of bacteria. Humidification range from tens of kg to 1500 kg/h, multiple models can be freely selected, you can choose on/off control mode, you can also accept 0~10V/4 ~ 20mA stepless adjustment or graded shunt adjustment, so as to meet a variety of requirements of users!

Working principle:

The plunger pump pressurizes the purified water to 2MPa, and then transmits it to the nozzle through the high-pressure water pipe. After atomization, the water mist is sprayed into the whole space with a micro mist of 3 ~ 15μm. The water mist absorbs heat in the air and changes from liquid to gaseous state, so that the humidity of the space is increased and the purpose of reducing the air temperature is achieved. The whole process is an isenthalpic process. This is the principle of humidification and cooling of micro fog system.

Use environment:

The temperature is 1~40 degrees Celsius, and the humidity is less than 80% RH The particles sprayed by each group of nozzles reach a distance of 2-3 meters.

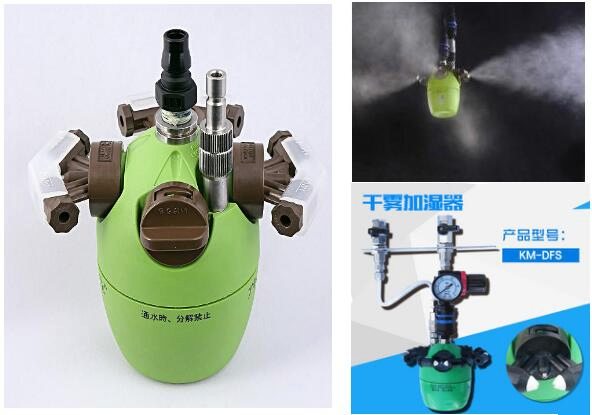

Fog of the smallest particles

◇ The average particle size is 7.5μm

◇ When the spray volume (one nozzle) is 2.4L/H and the air pressure is 0.3MPa

◇ Up to 4 nozzles can be installed, and the installation is convenient

◇ The high-quality dry fog nozzle brings you super dry fog particles with a silky feel.

The most suitable for small space humidification and will not wet the wall.

◇ Please use the air pressure in the range of 0.2-0.3MPa.

◇ The particle diameter is the measured value of laser deplerometry.

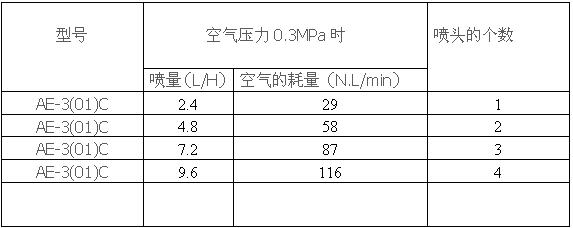

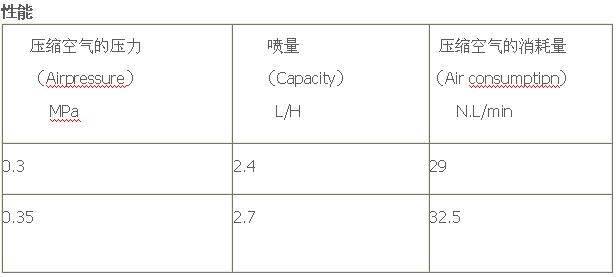

Dry fog nozzle model parameters

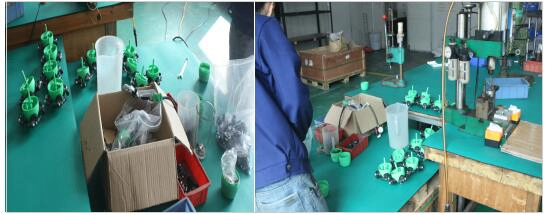

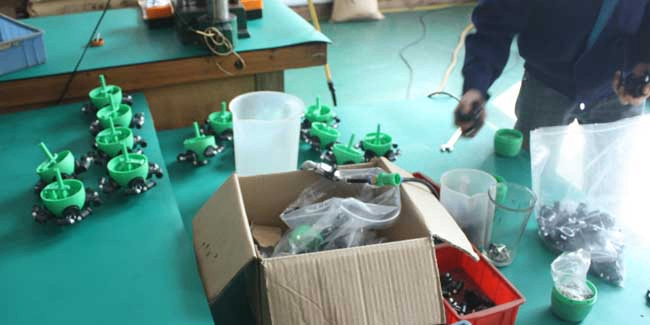

Product assembly picture

Success Stories
