Design features
1. The structure design of the quick-release nozzle is novel and scientific, and the nozzle body and the nozzle can be separated quickly and effortlessly. You just rotate the nozzle 90 by hand., It can be removed from the nozzle body, and vice versa, without any tools. As a result, maintenance downtime can be significantly reduced

2. Automatic and accurate alignment of the nozzle The nozzle has a built-in stopper, so that the nozzle will be locked in the correct position after the nozzle body is installed, thus avoiding time-consuming manual adjustment. As a result, full calibration is ensured at every installation, eliminating quality control problems due to nozzle calibration errors

3, chemical corrosion resistance, wear resistance quick release nozzle can be made of glass fiber reinforced polypropylene (containing 25% fiber), carbon fiber reinforced polypropylene (containing 40% fiber) and polyvinylidene fluoride (PVDF) three kinds of materials, have high strength, wear resistance and chemical corrosion resistance advantages, and can prevent flushing fluid agglomeration and accumulation. Ideal for flushing, rinsing and cleaning applications requiring phosphates, acids, solvents and other corrosive solutions. Among them, glass fiber reinforced polypropylene heat-resistant high temperature up to 82 ℃, carbon fiber reinforced polypropylene heat-resistant high temperature up to 120 ℃, while polyvinylidene fluoride is a high-purity material without pigment, which can keep the processing environment highly purified and heat-resistant up to 148 ℃ under 7kg pressure.

4. The nozzle body can have three specifications of 1/8 ", 1/4" and 3/8 "for a wide range of flow selection. The inner 0-type nitrile rubber sealing ring ensures absolute sealing between the nozzle body and the nozzle. The nozzle of the quick-release nozzle has a special shape for easy grasping; the nozzle has three types of QC fan, QB solid cone and QA hollow cone, which provide three spray modes of fan, solid cone and hollow cone respectively, and have Various flow rates and angles are available

Performance parameters

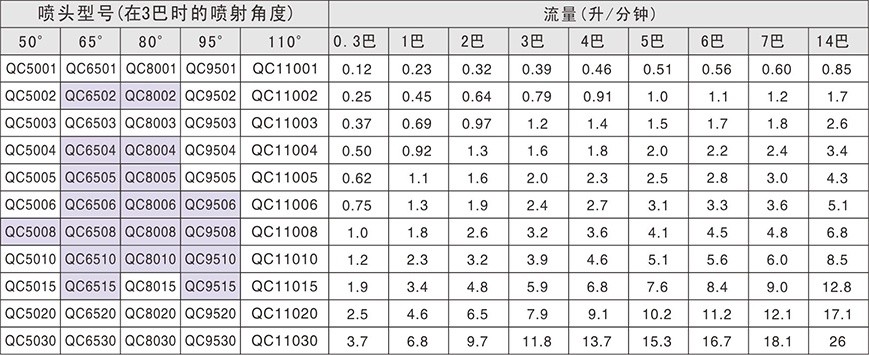

Quick-release fan nozzle

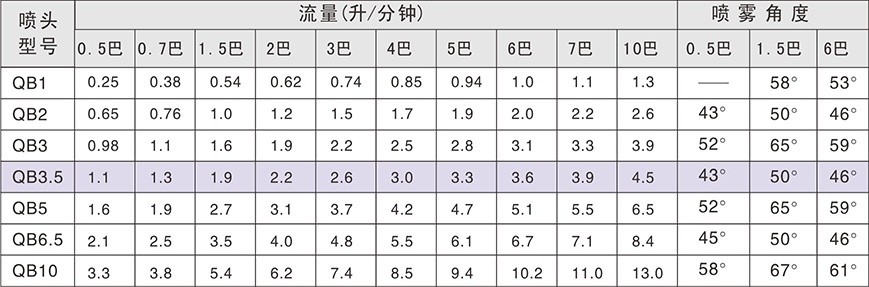

Quick-release solid cone nozzle

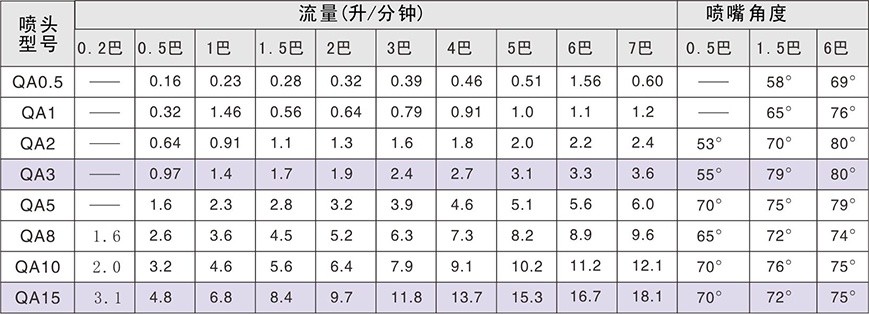

Quick-release hollow cone nozzle

Common applications
Production of printed circuit boards, product cleaning, rinsing, phosphating of metal parts, cooling, humidification, chemical manufacturing, dust control
