Design features

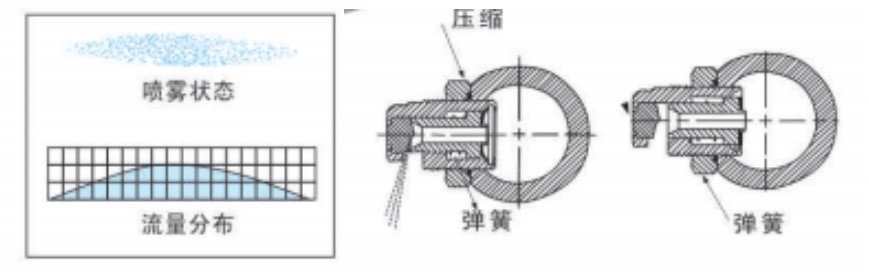

1. Self-cleaning nozzle When the nozzle is blocked by foreign matter, the nozzle body will automatically increase the pressure to promote the enlargement of the diameter. After the foreign matter is automatically discharged, the nozzle diameter will automatically return to the normal spray state. The nozzle axis is designed in accordance with the spray axis, which is convenient for the position arrangement of several nozzles.

2. Spray shape: fan/linear, flow range: 0.034L/min-48L/min

General application

Paper making: net washing. Felt wash, drum wash

Iron washing: continuous casting machine steel plate cooling

Water treatment: filter screen squeezer washing, conveyor belt squeezer washing, defoaming, air burst sand surface washing

Electronics: substrate alkaline cleaning automotive, home appliances: pre-coating treatment

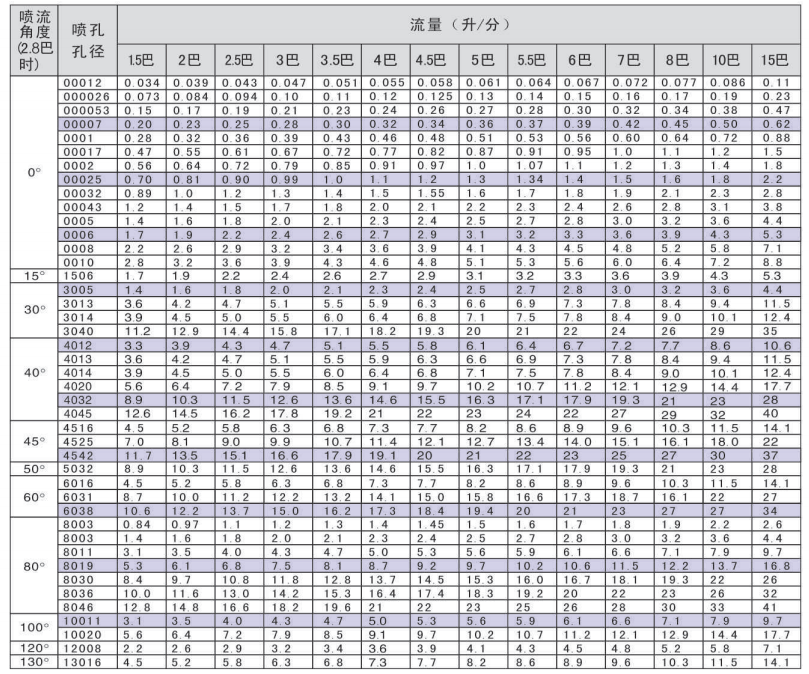

Performance data

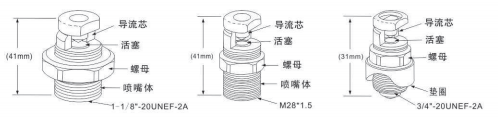

Size

Order Information
