Design Features

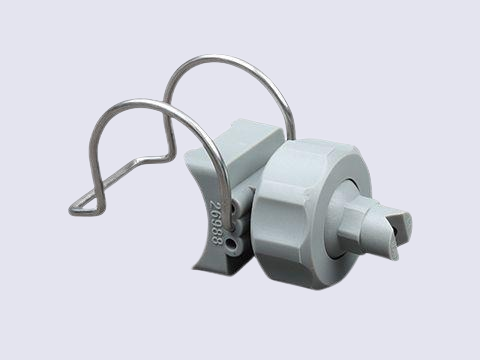

1. Clip‑on nozzles are secured to the manifold by a spring; threaded nozzles, on the other hand, are connected via a threaded joint.

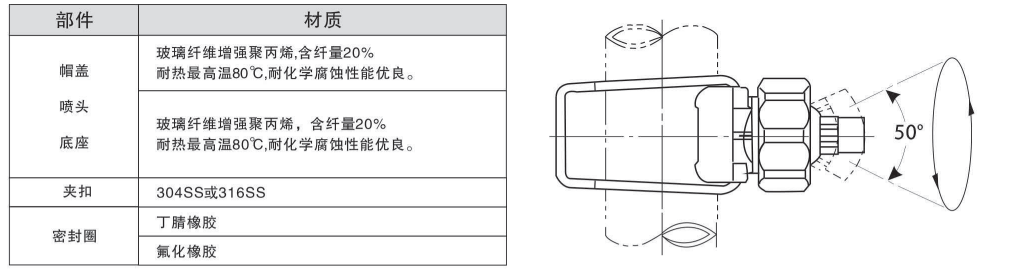

2. By connecting directly to a spherical nozzle or indirectly via threaded or quick‑release nozzles, you can create multiple configurations. This allows you to quickly and precisely adjust the nozzle’s spray direction, ensuring it always operates at peak performance.

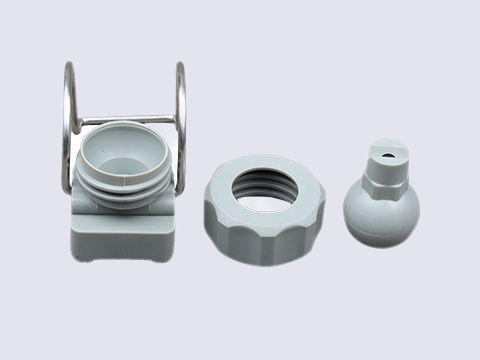

3. The nozzle of the adjustable spherical spray head can be removed very quickly—no tools are required; simply unscrew it by hand. To replace the spray head, remove the spherical nozzle from the nozzle body, then insert a new nozzle in place of the threaded or quick‑release ball.

Product Features

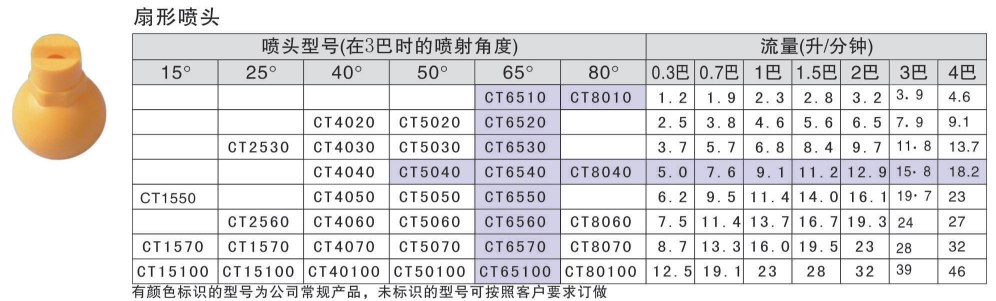

Performance Parameters

Common applications

Degreasing, phosphating, and other low-pressure applications in metal cleaning and surface treatment.
