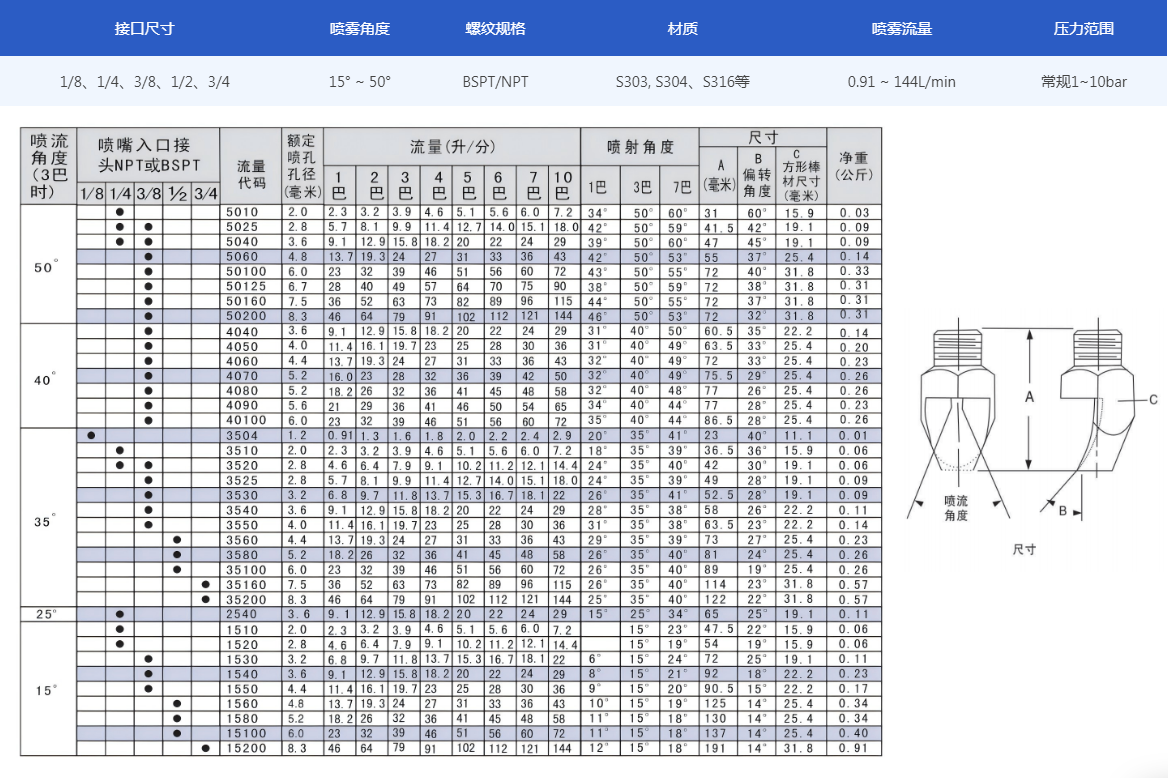

● Spray angle
15°-50°

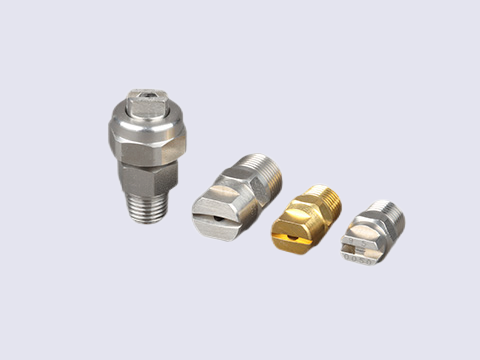

● Spray pattern
Fan-shaped spray, with the spray pattern forming a linear area.

● Structure
All-metal monolithic structure

●Features
A smooth fluid flow reduces the likelihood of blockages.

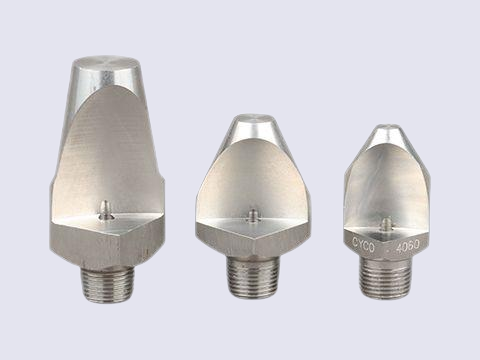

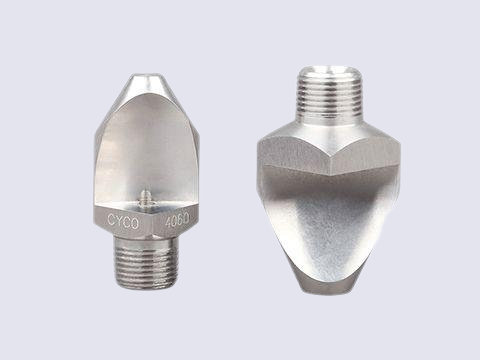

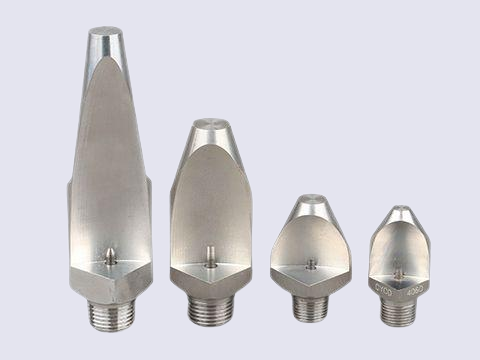

Integrated deflector‑surface design delivers a high‑impact, flat fan‑shaped spray with crisp edges and uniform distribution.

● Wash clean
Automobiles, vehicles, containers, films, filters, mesh, bottles, soil and sand, debris, metals.

● Dissemination
Etching solutions, oils, lubricants, pastes, acids, insecticides, herbicides, cleaning solutions, and the like.

● Cooling
Gases, fumes, heat exchangers, tanks, steel plates, steel sheets, roofs, and more.

●Water curtain
Fire prevention, fire suppression, heat resistance, dustproofing, and odor control.

●Papermaking
Cleaning of the paper machine’s wire section and other components.
